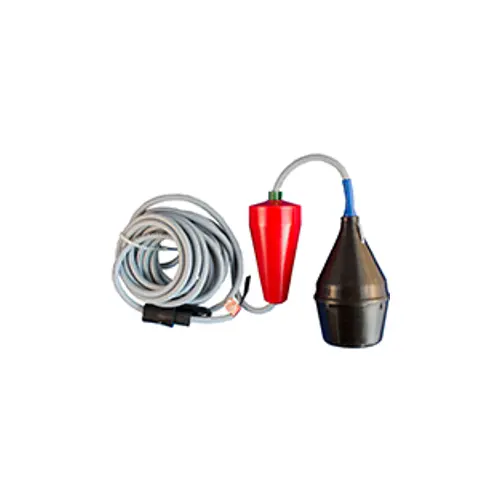

AVTECH’s Water Tank Level 1 Sensor (NC) monitors the rise and fall of water in a container (i.e. typically a large tank). The float and control weight are composed of chemically-resistant polypropylene; the 16′ cable is coated with rugged PVC. Because this sensor uses a dual-point switch and differential height between switch states, you can use just one sensor to monitor two levels… both high and low.
Dimensions of the float switch are 5.1″ H x 3.0″ W. The control weight is 4″ H x 2.25″ W. The 16′ attached cable with PVC coating has a protection rating of IP67 and NEMA 6. The switch state differential range is a minimum of 10″ and a maximum of 50″. Please see the Installation Note for more information.
Product # RMA-WTL1-SEN
